GitHub Actions: Key Components with Use Cases and Examples

GitHub Actions revolutionizes the automation and integration processes directly within your GitHub repositories. Understanding its key components helps you leverage it effectively to automate workflows.

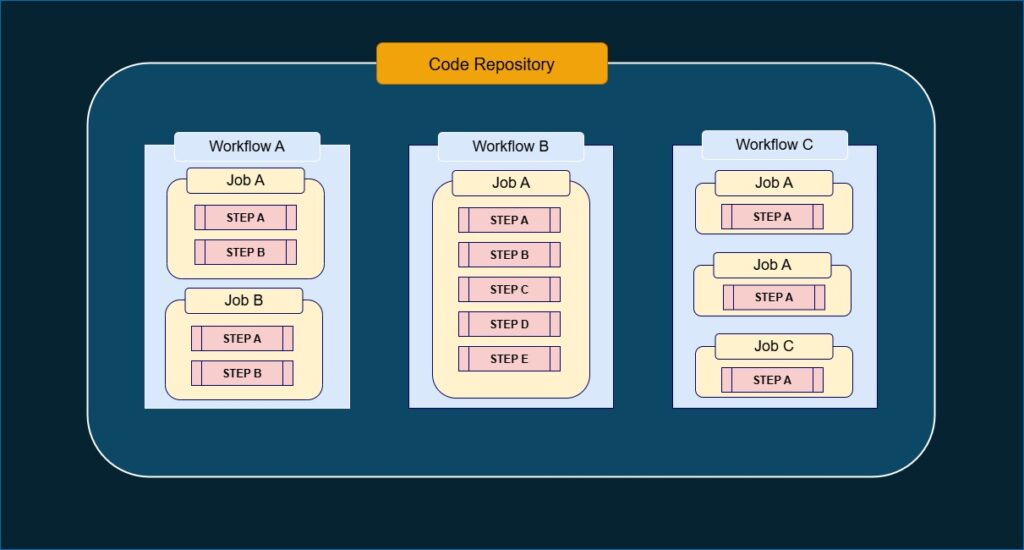

Core Components of GitHub Actions

1. Workflows

A workflow is a configurable automated process defined by a YAML file placed within the .github/workflows directory in your repository. Workflows are triggered by events like commits, pull requests, or scheduled times.

Example Workflow YAML:

name: CI Pipeline

on:
  push:
    branches:
      - main

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Install Dependencies
        run: npm install
      - name: Run Tests
        run: npm test

2. Jobs

Jobs represent discrete, independent tasks or collections of tasks within a workflow. Each job can execute on different runners concurrently or sequentially. They are defined with a unique identifier, specify the environment they run on (such as Ubuntu, Windows, or macOS), and include multiple steps that describe the detailed operations of the job.

Detailed Characteristics:

• Isolation: Each job runs independently, which provides isolation and security.
• Parallel or Sequential Execution: Jobs can execute concurrently or be configured to depend on other jobs, executing only upon successful completion of preceding jobs.
• Runners: Jobs specify the environment (runner) where they execute. Runners could be GitHub-hosted or self-hosted.
• Artifacts: Jobs can generate outputs and artifacts that subsequent jobs or workflows might consume.

Example Detailed Job:

jobs:
  build:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4
      - name: Setup Node.js
        uses: actions/setup-node@v3
        with:
          node-version: '20.x'
      - name: Install Dependencies
        run: npm install
      - name: Run Tests
        run: npm test
      - name: Upload Artifact
        uses: actions/upload-artifact@v3
        with:
          name: test-results
          path: test-results/

3. Steps

Steps are the building blocks within jobs, representing individual actions that perform specific tasks such as executing commands, running scripts, or calling predefined actions. Each step in a job executes sequentially, and if any step fails, subsequent steps typically will not run unless explicitly handled.

Detailed Insights:

• Execution Order: Steps execute sequentially within a job. The failure of one step generally stops subsequent steps.
• Scripting Support: Steps can directly run shell commands or scripts.
• Reusability: Steps can call predefined GitHub Actions from the GitHub Marketplace or community repositories.
• Contextual Information: Steps can access information about the workflow environment through context variables.

Example Detailed Step:

steps:
  - name: Checkout Repository
    uses: actions/checkout@v4

  - name: Configure Environment
    uses: actions/setup-python@v3
    with:
      python-version: '3.10'

  - name: Execute Script
    run: python script.py

4. Actions

Actions are reusable units of code designed to perform a specific task. These can be shared, versioned, and reused across multiple workflows and repositories, significantly simplifying workflow construction.

Detailed Insights:

• Public and Private Actions: Actions can be public (from GitHub Marketplace) or private (hosted within your organization).
• Types of Actions: Includes JavaScript actions, Docker container actions, and Composite actions.
• Versioning: Actions can be versioned for stability and reliability, allowing users to reference specific versions.
• Marketplace Integration: GitHub Marketplace provides numerous community-maintained actions covering common tasks like deployments, testing, code analysis, and security checks.

Example Detailed Action:

- uses: actions/setup-node@v3
  with:
    node-version: '20.x'

5. Runners

Runners execute jobs, providing environments (e.g., Ubuntu, Windows, macOS) for running steps. GitHub offers hosted runners and supports self-hosted runners.

Use Case: Continuous Integration and Deployment (CI/CD)

Automating CI/CD processes enhances efficiency, reduces errors, and ensures consistent deployments.

Complete Workflow Example:

name: Continuous Integration

on:
  push:
    branches: [ main ]
  pull_request:
    branches: [ main ]

jobs:
  build:
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4
      - name: Set up Node.js
        uses: actions/setup-node@v3
        with:
          node-version: '20.x'
      - name: Install dependencies
        run: npm install
      - name: Run tests
        run: npm test

  deploy:
    needs: build
    runs-on: ubuntu-latest

    steps:
      - uses: actions/checkout@v4
      - name: Deploy application
        run: ./deploy.sh

Benefits of Using GitHub Actions

• Efficiency: Automate repetitive tasks.
• Consistency: Ensure standardized processes across projects.
• Integration: Seamlessly integrates with GitHub repositories.

By mastering GitHub Actions’ core components—workflows, jobs, steps, actions, and runners—you can significantly streamline and automate your software development lifecycle.
